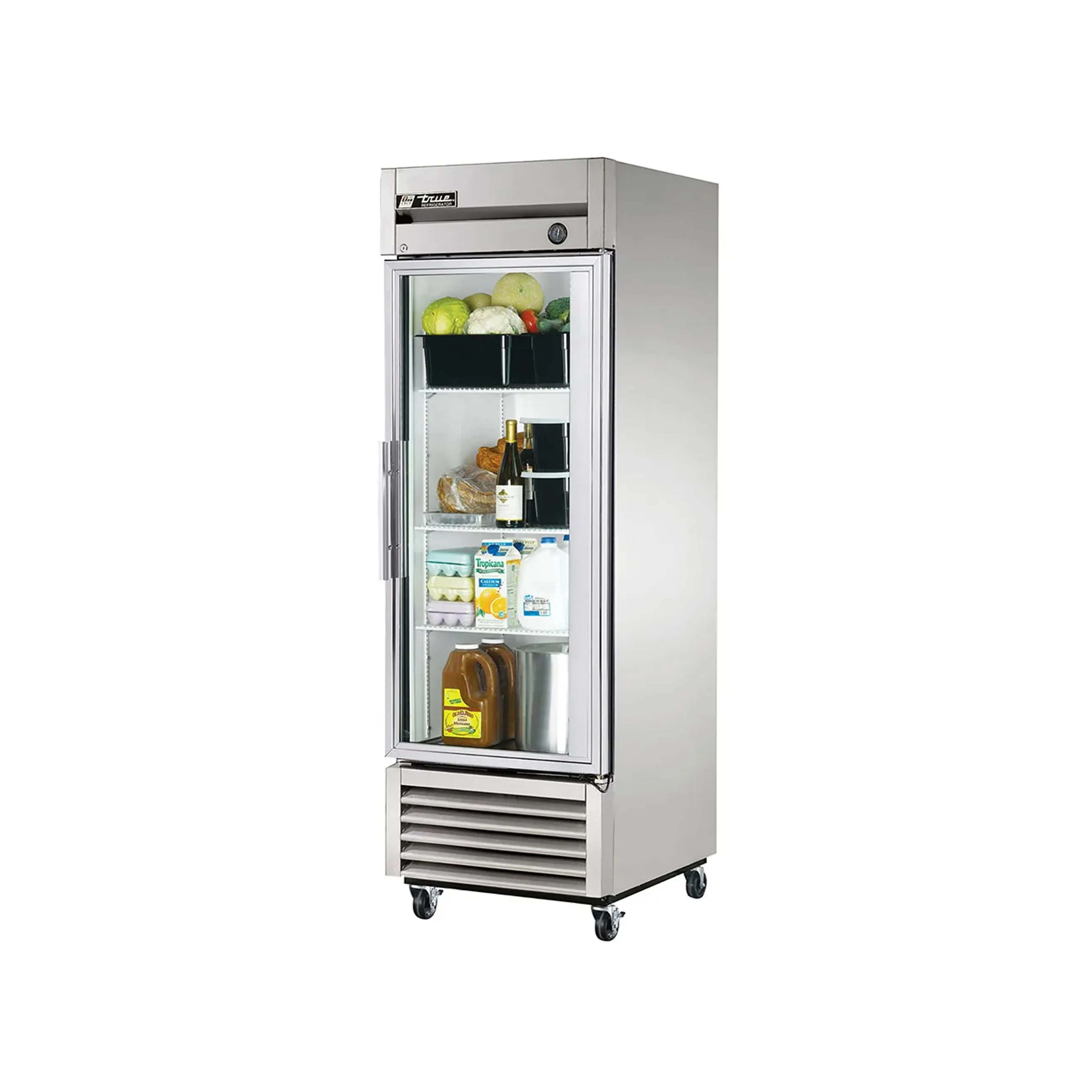

True Refrigeration?T-23G-HC~FGD01?Description
The double-pane glass door on the True T-23G-HC~FGD01 single-section refrigerator helps staff members find ingredients without opening the door and releasing cold air. With a torsion closure system, this door closes by itself, and magnetic gaskets create a seal to reduce cold air leaks around the door frame. The unit has foamed-in-place polyurethane insulation and a corrosion-resistant stainless steel front that can withstand heavy use. LED lights shine on the interior??s PVC-coated shelves, which adjust in?1?2-inch increments.
Cabinet temperatures range from 33 to 38 degrees Fahrenheit and can be monitored on the external display. It uses R290 hydrocarbon refrigerant, a more environmentally friendly option than traditional refrigerants. Thought it is prone to take in more dirt than top-mounted units, the bottom-mounted refrigeration system can be accessed for maintenance.
The reverse condensing fan motor in this True T-23G-HC~FGD01 reach-in refrigerator acts as a self-cleaning tool that can improve the condensing coil's operation and efficiency. When the unit is turned on, it directs air in a revese direction to help remove collection of dust, dirt, and debris from the coil. Though this is an effective mechanism, it should not replace preventative maintenance.
Product Details
- 3 adjustable, PVC-coated shelves
- LED cabinet lighting enhances visibility
- Double-pane glass door enables operators to locate items before opening it
- Self-closing door retains cold air
- 15-in. extruded door handle
- Magnetic gaskets reduce air leaks
- Stainless steel front resists dents, scratches, and corrosion
- Polyurethane insulation is foamed in place to block hot air
- 4-in. castors with locking front set
Bottom-mount Refrigeration System
- Temperature range: 33-38 degrees F
- External temperature display
- Capillary tube system controls R290 hydrocarbon refrigerant
- Bottom-mounted location keeps the compressor in the coolest part of the kitchen
- Accessible condenser coil
- Corrosion-resistant, epoxy-coated evaporator
- Condenser and evaporator fan motors consistently move air around the cabinet
- Condensing coil buildup eliminated with daily reverse condensing fan technology
Dimensions & Utilities
- Shelves: 227?8?in. W x 231?4?in. D
- Overall: 27 in. W x 311?4?in. D x 833?8?in. H
- 2.2 A,?1?4?HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration T-23G-HC~FGD01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Bottom |
| Cubic Feet | 23 |
| Depth (in) | 29.88 |
| Door Type | Glass |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 78.38 |
| Hertz | 60 |
| Interior Material | Aluminum |
| Sections | 1 |
| Number of Shelves | 3 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 27 |
| Series | T Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left |
| Weight | 335.00 |
