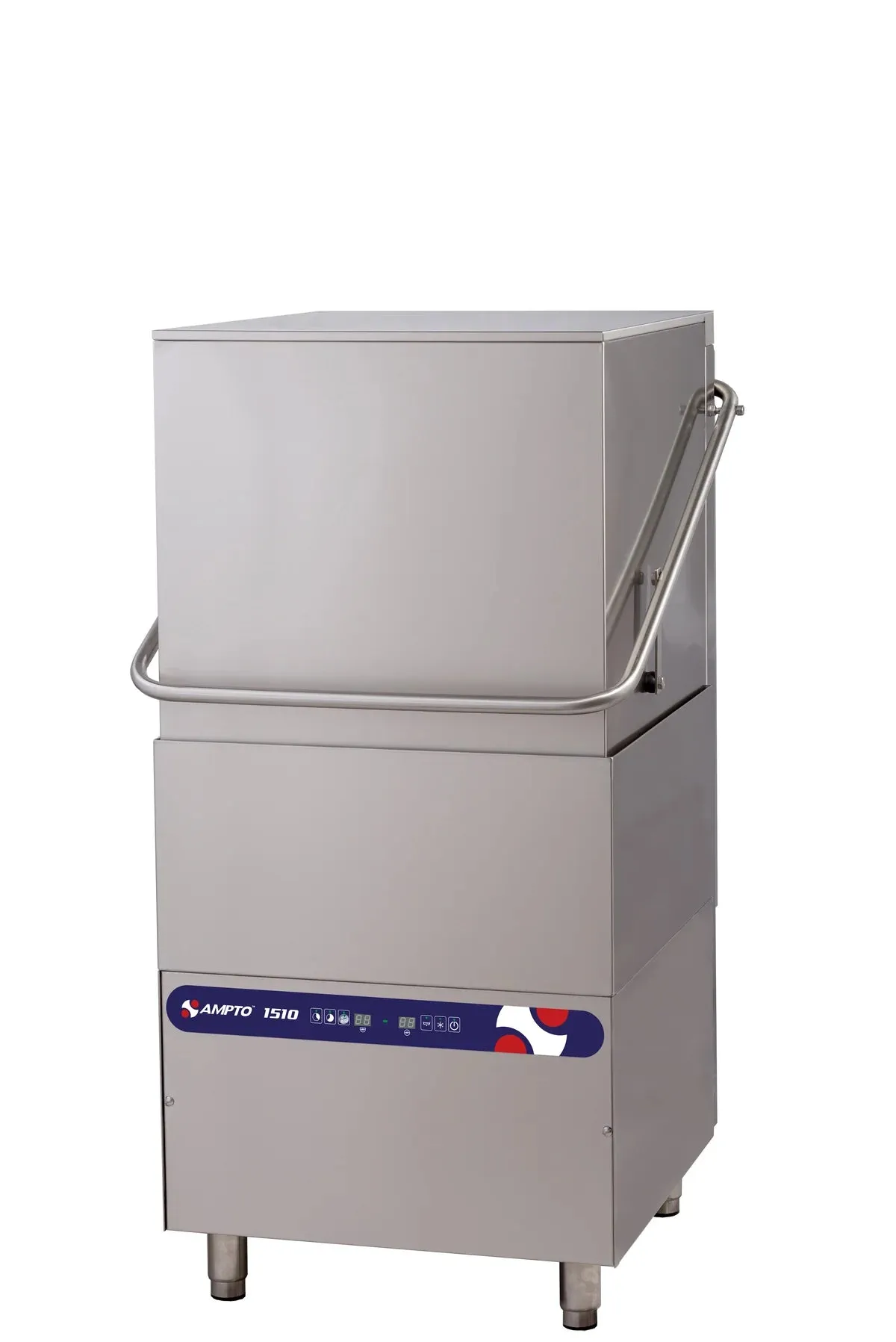

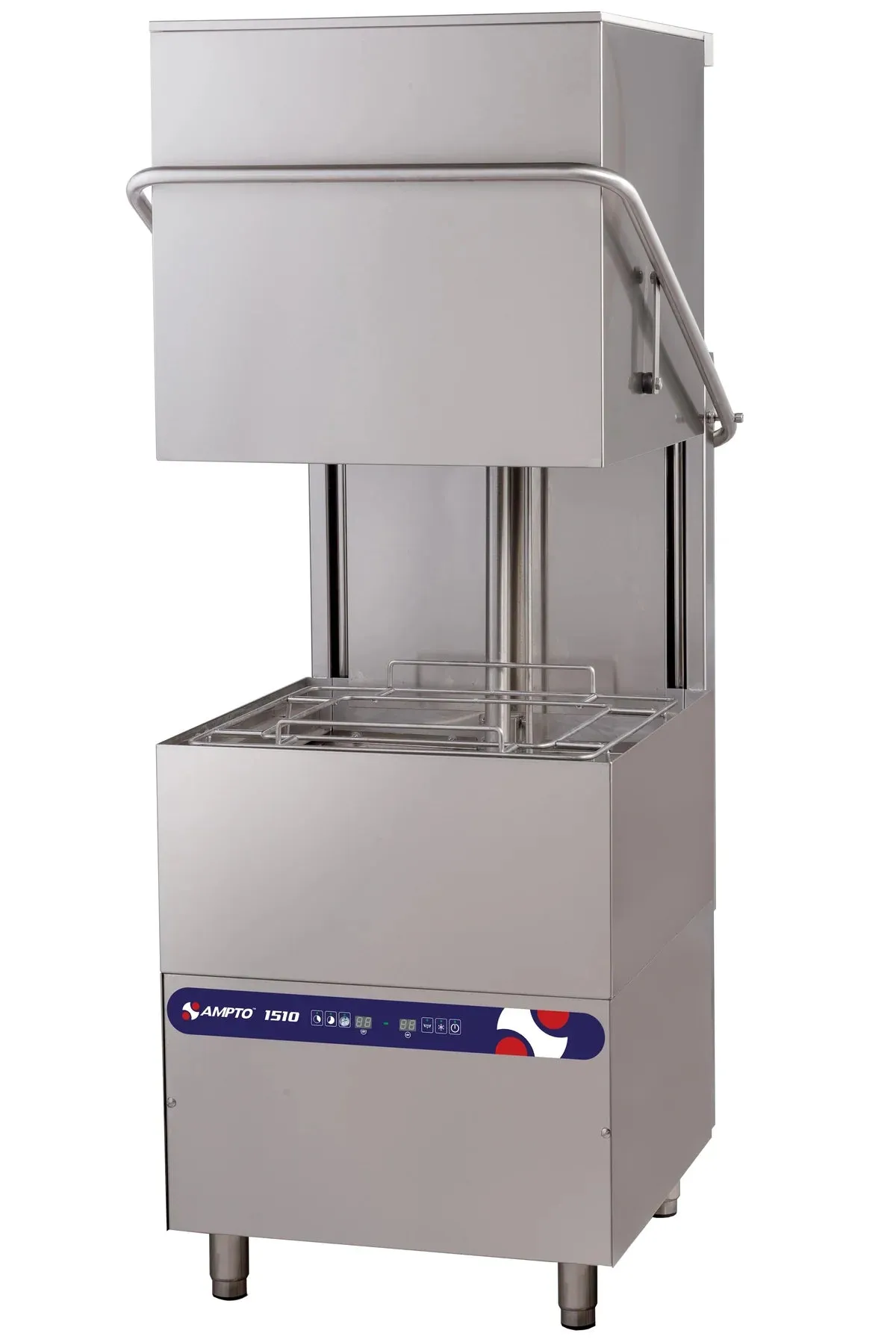

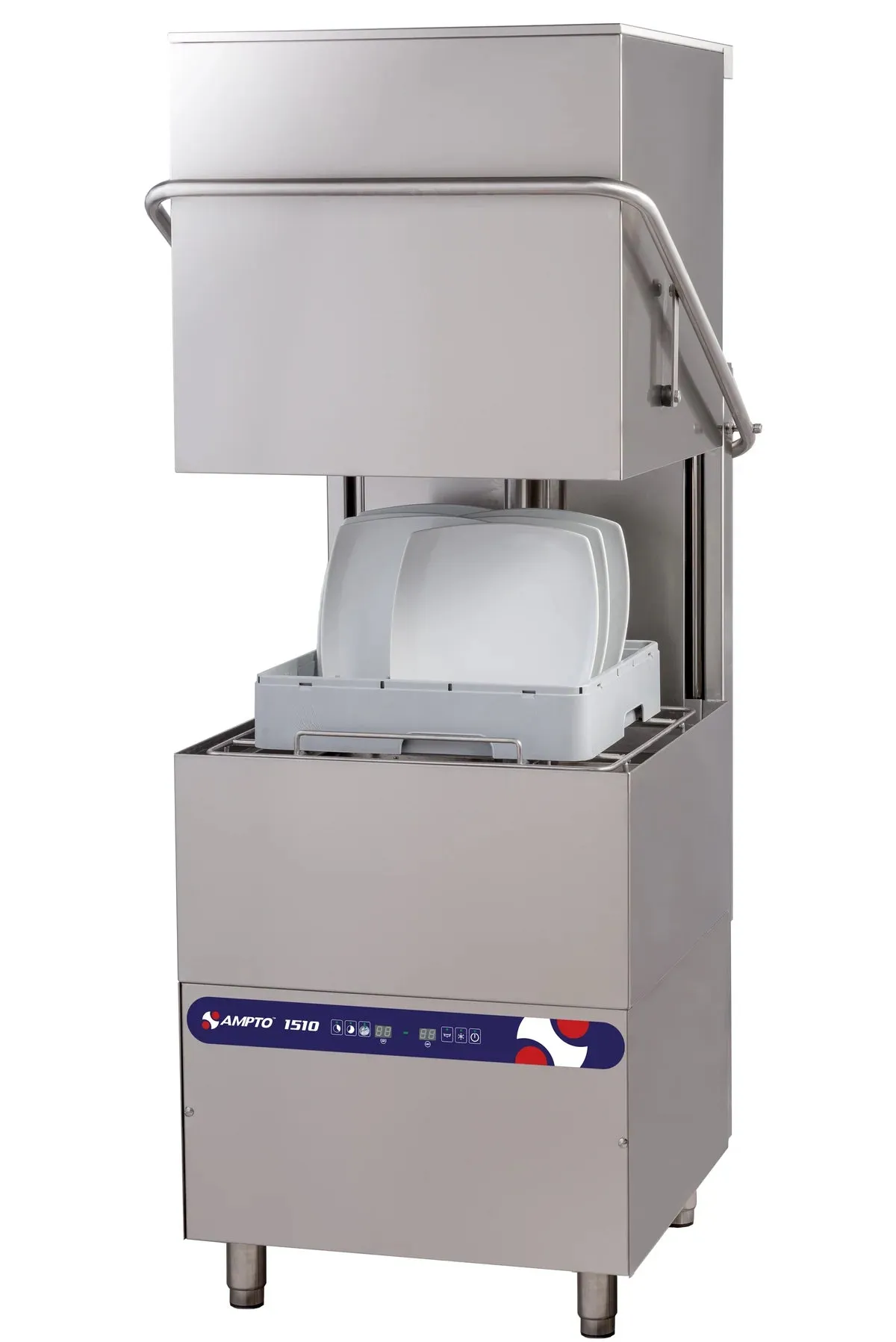

AMPTO Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour - 1510
Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour, detergent & rise-aid pumps, front-mount digital controls, drain pump, (3) operating cycles, , stainless steel exterior panels & interior, 1-1/2 HP, cETLus, ETL-Sanitation
PARTS:
- NSF certified indicators for wash temperature, rinse temperature and rinse pressure
- 304 stainless steel body and handle, heavy duty & corrosion resistant
- Upper and lower wash/rinse arms with high temperature cycles
- 1 peg rack, 1 flat rack & 1 cutlery tray included
FEATURES:
- ?Automatic Fill
- Double skin door
- Automatic drain pump
- Self-cleaning mode
- Built in booster heater
- Built in chemical pumps
- IP 44 washing pump
- Guarantee rinse temperature
- Self-diagnostic mode
- 3 washing programs available
- Easy access for maintenance
- Durable inox construction
- Standard pressure reducer valve (PRV)
- Standard back cover
PRODUCT SPECIFICATIONS:
- BASKET SIZE 20?? x 20??/ 500 x 500 mm
- POWER SUPPLY 208-240V / 60Hz / 1 Ph
- POWER 10.5 kW
- AMP 39 A
- WASH PUMP MOTOR 1.5 HP
WATER CONNECTION:
- FLOW PRESSURE 20 psi ?? 5
- WATER CONSUMPTION / RACK 0.7 gal (2nd program)
- WATER CONSUMPTION / HOUR 13.2 gph
- WATER INLET CONNECTION 3/4??
- DRAINING CONNECTION 1.2??
CAPACITY:
- CAPACITY Booster tank: 7.4L, Wash tank: 68L
- HEATING ELEMENT Booster tank: 7.5 kW, Wash tank: 6 kW
- RACK / HOUR (1ST PROGRAM) 28
- RACK / HOUR (2ND PROGRAM) 19
- RACK / HOUR (3RD PROGRAM) 14
- WASH CYCLE 1 103 SEC
- WASH CYCLE 2 223 SEC
- WASH CYCLE 3 343 SEC
- RINSE CYCLE 16 SEC
WORKING TEMPERATURE:
- WASHING 77 ??C / 170.6 ??F
- RINSING 74 ??C / 165.2 ??F

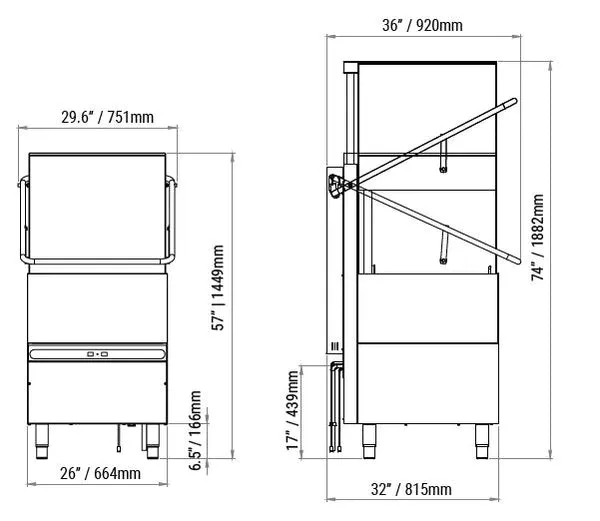

?DIMENSIONS:
- DOOR CLEARANCE 16?? / 400 mm
- USEFUL DOOR OPENING 15.5?? / 395 mm
- NET DIMENSIONS (WDH) 30?? x 36?? x 57?? / 751 x 920 x 1449 mm
- (74?? / 1882 mm open)
Plug and Wire (not included): Requires a certified electrician to install unit.

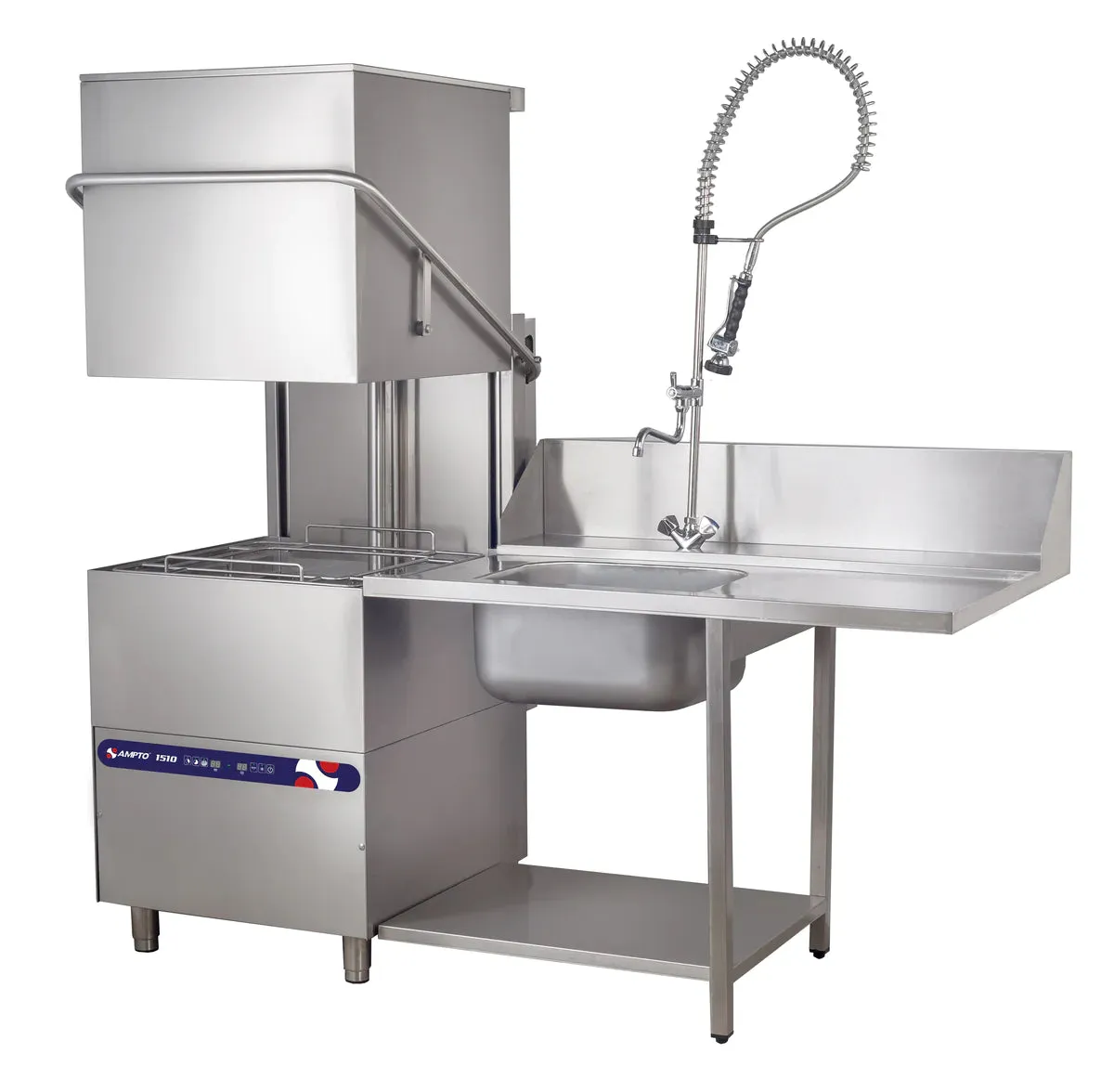

*Dish table do not include
NOTE: Normal operation generates steam that may escape from the door. Materials like wood, laminate etc. are unsuitable for areas exposed to dishwasher steam and only stainless steel surfaces is recommended
