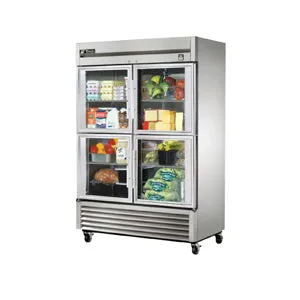

The True TS-49G-4-HC~FGD01 two-section refrigerator has six PVC-coated, adjustable wire shelves, which are highlighted by LED lighting in the cabinet to increase visibility. Because the doors have glass windows, product is visible, and locks on the doors prevent unauthorized access. Constructed of stainless steel, the interior and exterior are heavy duty and rust resistant. Foamed-in-place polyurethane insulation keeps cold air inside the unit to maintain the set temperature, while 4-inch castors enable the unit to be moved for servicing and cleaning.

Temperatures in the True TS-49G-4-HC~FGD01 reach-in refrigerator can be set by the operator on a level between 33 and 38 degrees Fahrenheit, as eco-friendly R290 hydrocarbon refrigerant runs through the refrigeration system. So it is accessible for maintenance, the condenser is bottom mounted, though this position is close to dirt and debris on the floor.

The condensing coil's surface is automatically cleaned when the compressor is turned on. Using a reverse blowing mechanism, the condensing fan motor blows off buildup of debris from the coil for 20 seconds. With a clean surface, the coil can operate for longer periods while using less energy. Preventive maintenance should continue to be applied to the unit to ensure the coil is working properly over time.

Product Details

• Stainless steel exterior resists scratching, denting, and rusting
• Interior is stainless steel to ease cleaning
• Foamed-in-place polyurethane insulation retains cold air
• Durable steel frame rail is powder coated to resist corrosion
• 4-in.-diameter castors have locks on the front set
• 4 thermal, double-pane glass half doors self-close to retain cold air
• 15-in. aluminum door handles
• Door locks restrict cabinet access
• Removable magnetic door gaskets seal in cold air
• 6 PVC-coated shelves can be adjusted in?¹?₂-in. increments
• LED interior lighting ensures item visibility

Refrigerator System

• Temperature holding range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant
• Electronically commutated fan motors reduce production of heat and consumption of energy
• Condensing fan motor uses a 20-second mechanism to clean off condensing coil's surface
• Evaporator has a corrosion-resistant epoxy coating
• Bottom-mounted condensing unit operates in the coolest area of the kitchen

Dimensions & Utilities

• Shelves: 24⁹?₁₆?in. W x 22³?₈?in. D
• Overall: 54¹?₈?in. W x 32 in. D x 83³?₈?in. H
• 5.4 A,?¹?₂?HP
• 115 V/60 Hz/1 ph, , 9-ft. cord with a NEMA 5-15P plug

True Refrigeration TS-49G-4-HC~FGD01 Specifications
